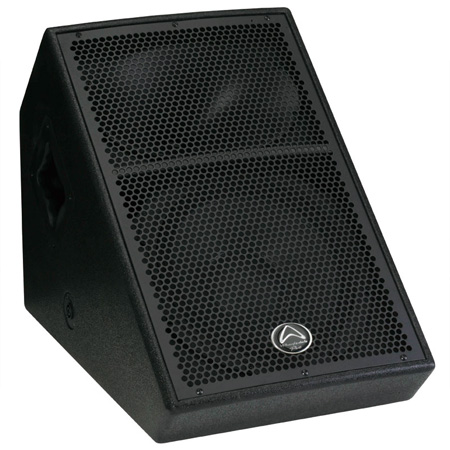

Dvosistemska monitorska drvena zvučna kutija trapezoidnog oblika, sa RHINO ROCK premazom, crne boje, sa 12" zvučnikom, sinusne snage 400W, 8Ohma, 60-20kHz, usmerenosti od 90 x 45, dimenzija 449 x 390 x 618mm, težine 24kg
Untitled Document
| MODEL |
DELTA 12M |
| Power Handling |
|
| Continuous |
400W |
| Peak |
1600W |
| Programme |
800W |
| Max SPL (Calculated) |
|
| dB SPL @ Peak Rated Power |
129dB |
| Nominal Coverage |
|
| (H @1KHz) |
90° |
| (V @1KHz) |
45° |
| Recommended High Pass Frequency |
1.5KHz / 1.8KHz |
| Recommended High Pass Slope |
18dB/Oct |
| Crossover Frequency |
1.8KHz |
| Bi-Amp Mode Switch |
Yes |
| LF Size |
332mm / 12" |
| LF Power (Continuous RMS) |
400w |
| LF Sensitivity (Free Field 1W @ 1M) |
97dB |
| LF Voice Coil |
76.2mm / 3" |
| LF Cone Material |
Paper |
| LF Voice Coil Material |
Copper |
| LF Voice Coil Former Material |
Fibre Glass |
| LF Basket Material |
Aluminium |
| LF Basket Type |
Die-Cast |
| LF Magnet Structure Mass |
2.467Kg / 5.412lbs |
| LF Magnet Structure Material |
Ferrite |
| HF Size |
50.8mm / 2" Titanium |
| HF Power (Continuous RMS) |
50W |
| HF Sensitivity (Free Field 1W @ 1M) |
104dB |
| HF Voice Coil |
50.8mm / 2" |
| HF Waveguide Type |
Elliptical |
| HF Waveguide Exit |
35.6mm / 1.4" |
| HF Diaphragm Material |
Titanium |
| HF Voice Coil Former Material |
Kapton |
| HF Magnet Structure Mass |
1.197Kg / 2.63lbs |
| HF Magnet Structure Material |
Ferrite |
| HF Protection |
SK3 |
| Enclosure Material & Thickness |
15mm Plywood |
| Enclosure Finish |
RHINO ROCK? |
| Grille Material & Finish |
1.5mm Steel |
| Colour |
Black |
| Handles |
2 On Sides |
| Input Connector Type |
3x Speakon |
| Net Weight |
23.18Kg/ 50.9lbs |
| Gross Weight |
28.5Kg/ 62.8lbs |
| Dimensions (Unpacked) |
|
| H |
449mm / 17.7" (SITU) |
| W FRONT/REAR |
390mm / 15.3" |
| D |
618mm / 24.3" |
| Dimensions (Packed) |
|
| H |
462mm / 18.2" |
| W FRONT/REAR |
690mm / 27.2" |
| D |
522mm / 20.6" |
| CBM |
0.17 |
| Nominal Impedance (Ohms) |
8Ohm |
| General Parameters |
|
| System Type |
2-Way |
| Frequency Response (+/- 3dB) |
60-20KHz |
| Sensitivity |
|
| dB (1W @ 1M) |
97dB |
