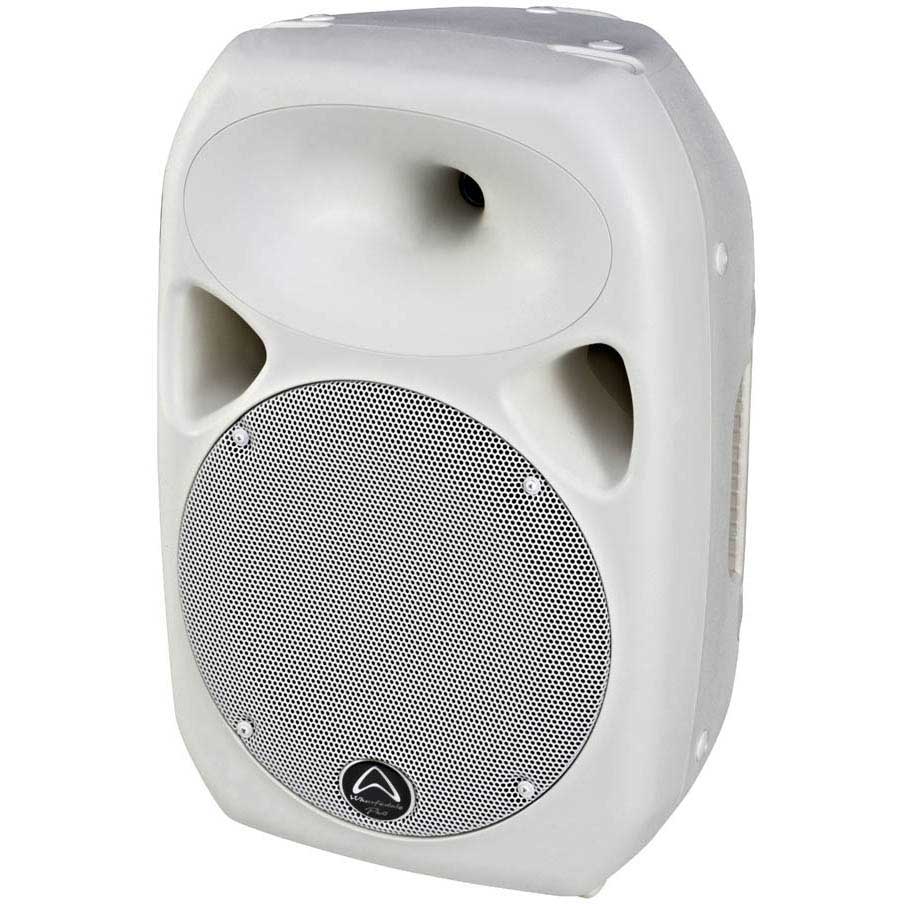

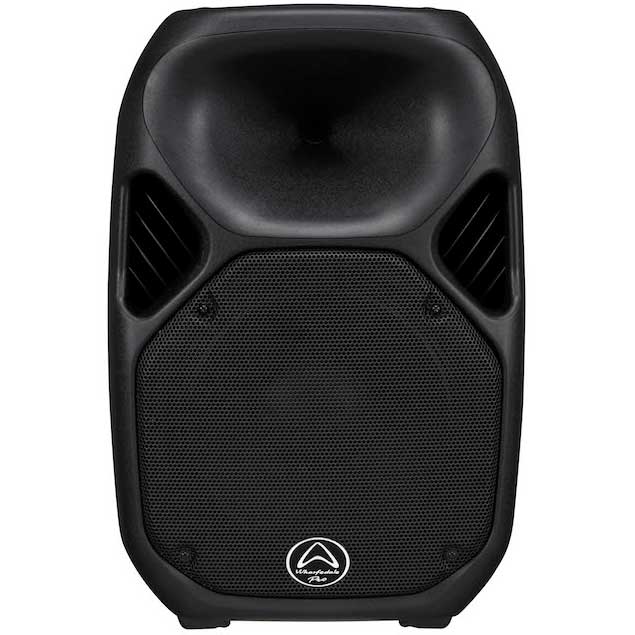

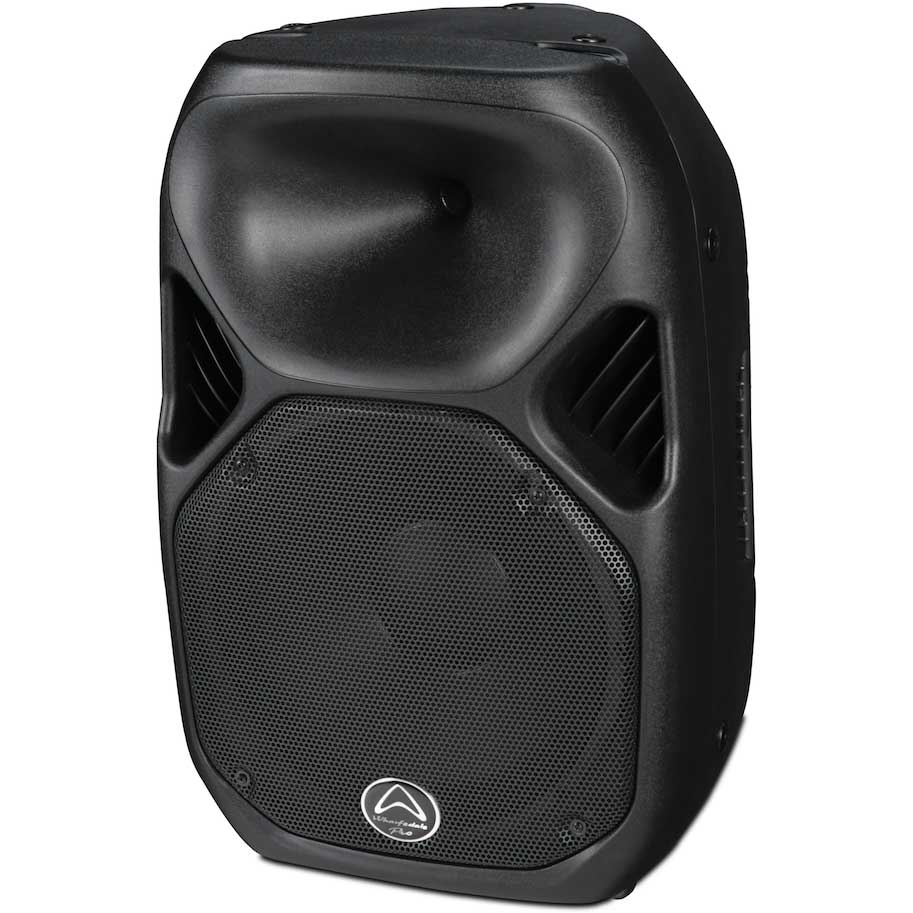

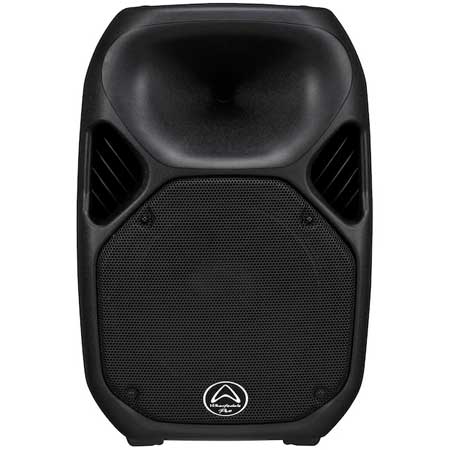

Specifikacije Wharfedae TITAN AX12

System Type

Active 12" 2-way Bi-amplified

Frequency Response (+/-3dB)

55Hz-20kHz

Frequency Range (-10dB)

50Hz-20kHz

Calculated Max SPL @ 1m

128dB

Transducers



Low Frequency Transducer



Size (mm / inches)

305mm / 12"

Coil Size (mm / inches)

64.26mm / 2.5"

High Frequency Transducer



Type

Compression Driver

Coil size (mm / inches)

44mm / 1.75"

Exit size (mm / inches)

25mm / 1"

Diaphragm Material

Titanium

Nominal coverage (H * V)

Hybrid Symmetry Horn 100� * 80�

Electronics



Amplifiers



Power amp LF RMS/Peak Watts

250 / 500w (Class D)

Power amp HF RMS/Peak Watts

50 / 100w (Class D)

Controls - EQ

Note - EQ changed by DSP knob

DSP

Advanced user selectable presets. 1:FLAT 2:MONITOR 3:SPEECH 4:BASS 5:PUNCH 6:LIVE

Hi Pass switch

90Hz

Amplifier Protection

Yes

Thermal Protection

Yes

Low line voltage shut down

60% Nominal line voltage

Driver Protection

Independant LF and HF limiters

DC Protection

Yes

Short Protection

Yes

Clip Limiter

Turns on ~250w output

Limiter indicator

Red LED

Power indicator

Green LED

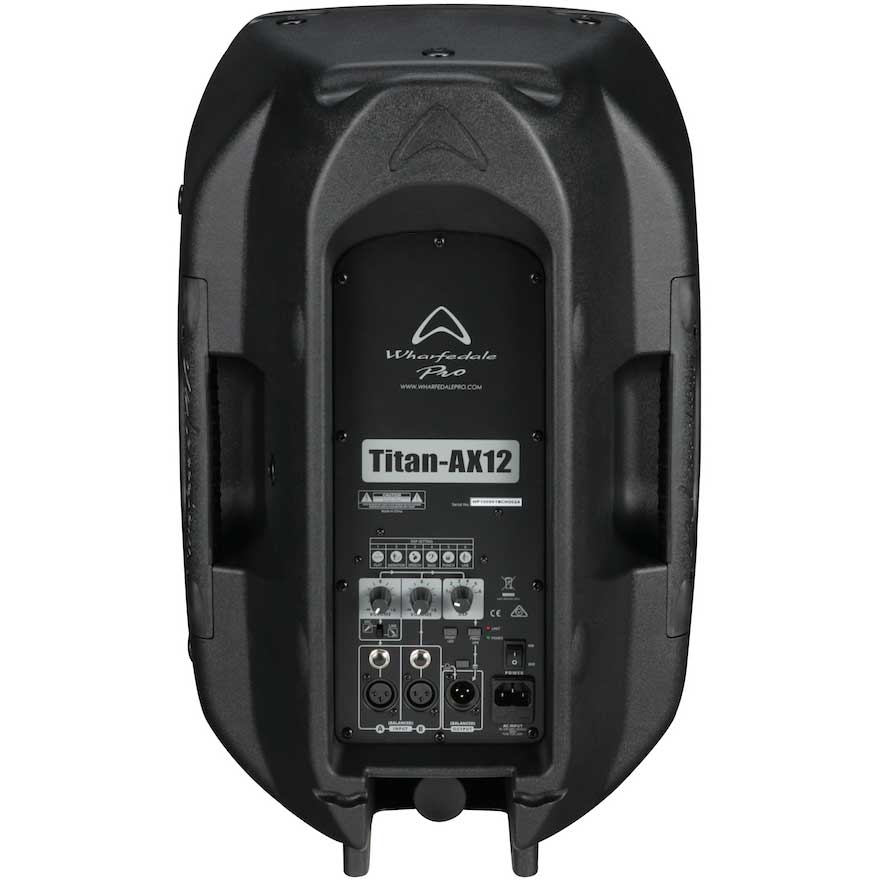

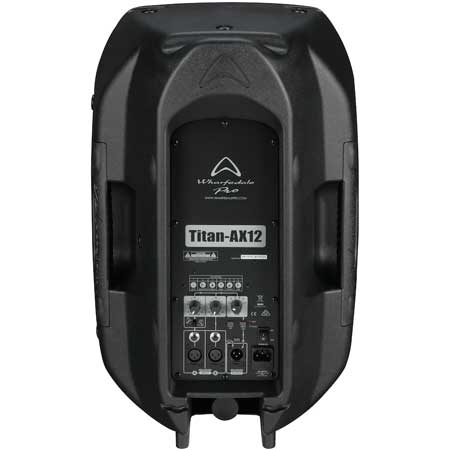

Connectors / inputs

0

Input type

Switchable balanced mic or line level (Chan 1)

Input connector

2 * XLR & 2 * 1/4" jack (Chan 1 Line/MIC)

Line Output

0

Line output connector

Switchable LOOP/MIX Balanced Female XLR

AC Power

0

Power Supply

SMPS

AC Power options

AC100-120V/220-240V~ 50/60Hz

Power on indicator

Rear LED

Hardware

0

Rigging / Bracket / Mounting Options

10 M8 threaded inserts including 4 M8 threaded inserts on bottom in OmniMount 30.0-type footprint, 35mm receptacle with lock screw, 2 carry handles (one on each side)

Optional wall-mount bracket

LED Horn lighting (On/Off switch)

Yes

Enclosure Material and finish

Injection Moulded Polypropylene

Colour options

Black / White

Grille Material & Finish

1.2mm steel

Height

582.7mm / 22.9"

Width Front

384.6mm / 15.1"

Width Rear

384.6mm / 15.1"

Depth

318.6mm / 12.5"

Height

663mm / 26.1"

Width Front

435mm / 17.1"

Width Rear

435mm / 17.1"

Depth

408mm / 16.1"

Net Weight (kg / lbs)

12.4kg / 27.28lbs

Gross Weight (kg / lbs)

15.5kg / 34.1lbs
